Air Leaks Are Invisible—Until Thermal Imaging Reveals the Pattern
Air leakage through a building envelope is invisible, but its effect on surface temperature can be visible in thermal imagery. Where conditioned air escapes or outdoor air infiltrates, nearby building materials may warm or cool differently than the surrounding surface—turning hidden drafts into a pattern worth investigating. Aerial Thermal Imaging helps find the problem.
For larger buildings, aerial thermal imaging adds another advantage: it can rapidly document broad façade, roof, and transition areas that may be difficult, time-consuming, or unsafe to inspect from the ground.

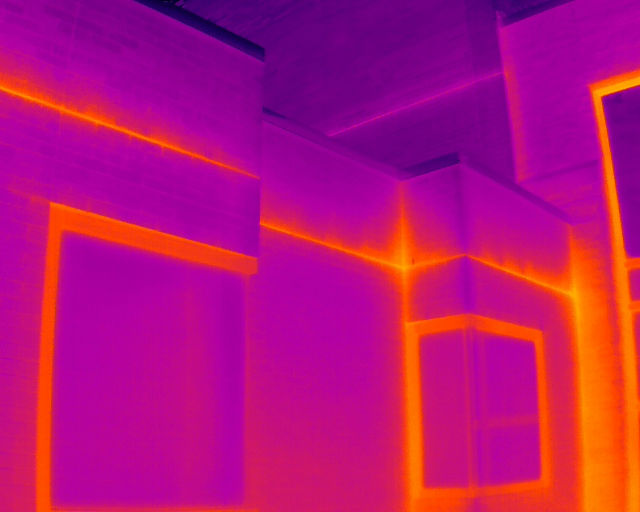

What Air Leakage Looks Like in Thermal
A thermal camera does not directly see air. It measures surface-temperature differences.
When moving air affects a wall, ceiling, window surround, roof edge, or other part of the enclosure, it can create a recognizable thermal pattern. Depending on the building conditions and whether the scan occurs from the interior or exterior, that pattern may appear as a streak, plume, fan-shaped area, or localized temperature change near an opening or assembly transition.
Common thermal indicators include:
Cooler or warmer streaks extending from joints or penetrations
Patterns around windows, doors, louvers, and expansion joints
Linear anomalies at floor lines, roof-to-wall transitions, parapets, or soffits
Localized temperature differences around plumbing, conduit, cable, duct, and mechanical penetrations
Repeating anomalies across a façade that suggest a broader construction or air-sealing issue
Thermal imaging reveals the temperature effects associated with leakage, not airflow itself. That distinction matters: a thermal pattern may also relate to insulation variation, thermal bridging, moisture, solar exposure, HVAC effects, or material differences. A reliable interpretation considers the building details and inspection conditions before identifying an anomaly as likely air leakage.
Where Leaks Commonly Occur
Air leakage tends to appear where building systems meet, change direction, or are penetrated. Those transitions are often more vulnerable than the middle of a continuous wall assembly.
Typical locations include:
Window and door perimeters
Wall-to-roof and wall-to-foundation transitions
Top plates, rim joists, floor lines, soffits, and parapets
Pipe, conduit, cable, vent, and refrigerant-line penetrations
Mechanical chases and service openings
Interfaces between different materials or construction systems
Areas modified during renovations, additions, repairs, or equipment upgrades
Aerial thermal scanning is valuable because it can show whether an issue is isolated or repeated across an entire elevation. Rather than investigating one obvious draft, owners and building teams can see patterns across the enclosure and focus follow-up work where it is most justified.
Why It Matters
Air leakage can increase heating and cooling demand, create occupant comfort complaints, and make otherwise well-insulated areas perform poorly. In cold climates, it can also contribute to a more serious enclosure concern: moisture transport.
Warm indoor air carries moisture. If that air moves into a cold wall or roof assembly and reaches a surface below its dew point, condensation can occur inside the construction. Over time, that can contribute to staining, deterioration, mold risk, corrosion, or reduced insulation performance.
Finding likely leakage pathways early helps teams address comfort, efficiency, and durability together. Limiting warm, humid interior air from entering cold wall cavities is an important part of controlling condensation in cold-weather assemblies.
Homes, Insulation, and Energy Loss
Thermal imaging is also useful for homeowners dealing with cold rooms, drafts, uneven temperatures, ice-dam concerns, or unexpectedly high heating and cooling costs.
Under appropriate weather conditions, an infrared inspection may reveal surface-temperature patterns consistent with:
Missing, thin, settled, displaced, or disturbed insulation
Air leakage around windows, doors, attic hatches, recessed lights, and exterior-wall penetrations
Cold ceiling or wall areas associated with attic, rim-joist, or exterior-envelope deficiencies
Thermal bridging at framing, structural transitions, and material changes
Areas that may justify targeted air sealing, insulation review, or a more complete home-energy assessment
A thermal scan does not see through walls or calculate a home’s exact energy loss. It shows surface-temperature patterns that can help narrow the investigation and direct repairs more intelligently. The U.S. Department of Energy includes infrared scans among the tools used during home-energy assessments to help locate air leaks and other energy-efficiency opportunities.
Why Use Aerial Thermal Technology
For homes, thermal imaging can help target comfort, insulation, and air-sealing concerns without opening finished surfaces. For larger homes, multifamily properties, commercial buildings, and facilities, aerial thermal imaging adds the ability to rapidly document roofs, upper façades, parapets, and other elevated exterior areas that are difficult to evaluate from the ground.
Aerial thermal imaging can help document:
Entire building façades instead of only isolated visible areas
Roof-to-wall transitions, parapets, and difficult-access envelope details
High windows, curtain-wall systems, exterior joints, and mechanical penetrations
Repeating thermal patterns across multiple elevations
Areas that should receive closer hands-on investigation
Baseline imagery for maintenance planning, repair verification, or future comparison
The inspection is non-destructive. It can help focus the next step—whether that means targeted air sealing, insulation review, a closer ground inspection, moisture investigation, or consultation with a building-envelope professional—without immediately opening finished assemblies. Drone-based inspection can also reduce reliance on ladders, lifts, scaffolding, and roof walking during the initial assessment.
Cooler Weather Is a Good Time to Look
As cooler weather arrives across Minnesota and Wisconsin, the temperature difference between conditioned indoor spaces and outdoor surfaces typically becomes more favorable for building-envelope thermal imaging.
That temperature contrast is important. It can make the thermal effects of air leakage, insulation variation, and other envelope deficiencies more distinct than they may be during mild weather. In September, normal temperatures in the Upper Midwest continue to fall through the month, and recent Minnesota weather has already shifted toward cooler days and nights.
A good inspection still depends on the actual conditions on site. Solar exposure, wind, rain, building orientation, surface materials, and HVAC operation can all influence the thermal image. The most useful scan is scheduled when the conditions support a clear interpretation—not simply because the calendar says it is fall.
Common Questions
Can thermal imaging really show air leaks?
Thermal imaging can reveal surface-temperature patterns consistent with air infiltration or exfiltration. Under favorable conditions, moving air can create streaks, plumes, and localized anomalies around joints, penetrations, windows, doors, and envelope transitions.
Thermal imaging does not directly measure airflow, so findings should be interpreted alongside building details and site conditions.
Can a drone inspect for air leakage?
A drone can efficiently document thermal patterns on large façades, roofs, upper-story windows, parapets, and other hard-to-reach exterior areas. It is particularly useful for identifying broad patterns and prioritizing locations for closer inspection.
Do I need a blower-door test?
Not always. A thermal drone survey may be the appropriate first step when the objective is to rapidly assess broad exterior envelope patterns, document difficult-access areas, or identify locations that deserve closer investigation.
When a project requires stronger confirmation of subtle active leakage paths, thermal imaging can be paired with blower-door testing or other diagnostic methods. A blower door creates a controlled pressure difference across the envelope, making some leakage pathways easier to identify.
Why should I care about air leakage?
Air leakage can contribute to energy loss, draft complaints, uneven temperatures, and increased HVAC workload. It can also transport moisture into walls and roof assemblies, creating condensation and durability concerns if warm, humid air reaches cold interior surfaces.
Next Step
If a building or home is drafty, abnormally expensive with HVAC cost, difficult to access, or showing recurring comfort or enclosure concerns, start by documenting the thermal pattern across the exterior.
Aerial thermal imaging provides a fast, non-destructive way to identify areas that deserve closer attention—before repair decisions become broader, more invasive, or more expensive.
See thermal imaging for more information.
